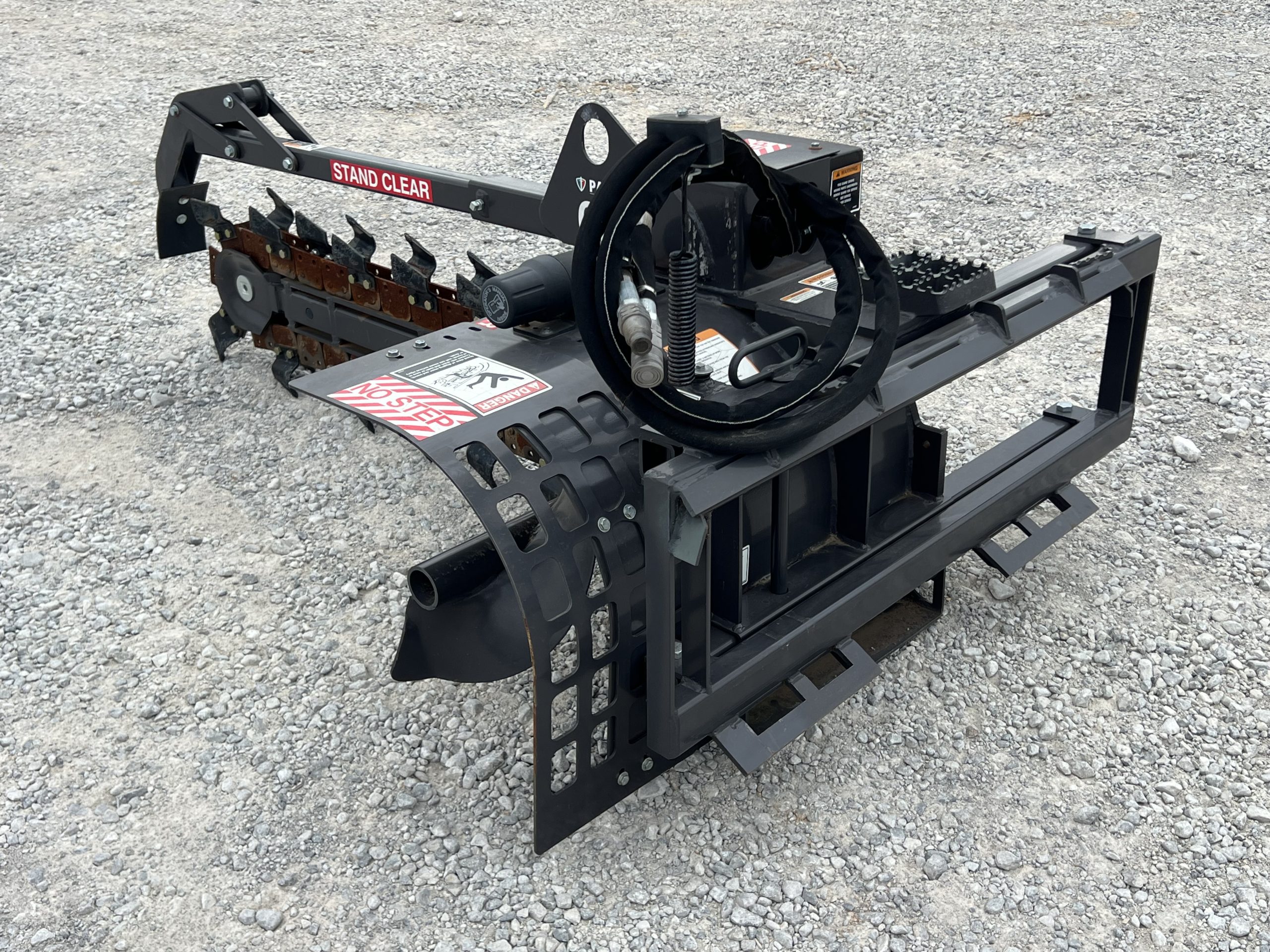

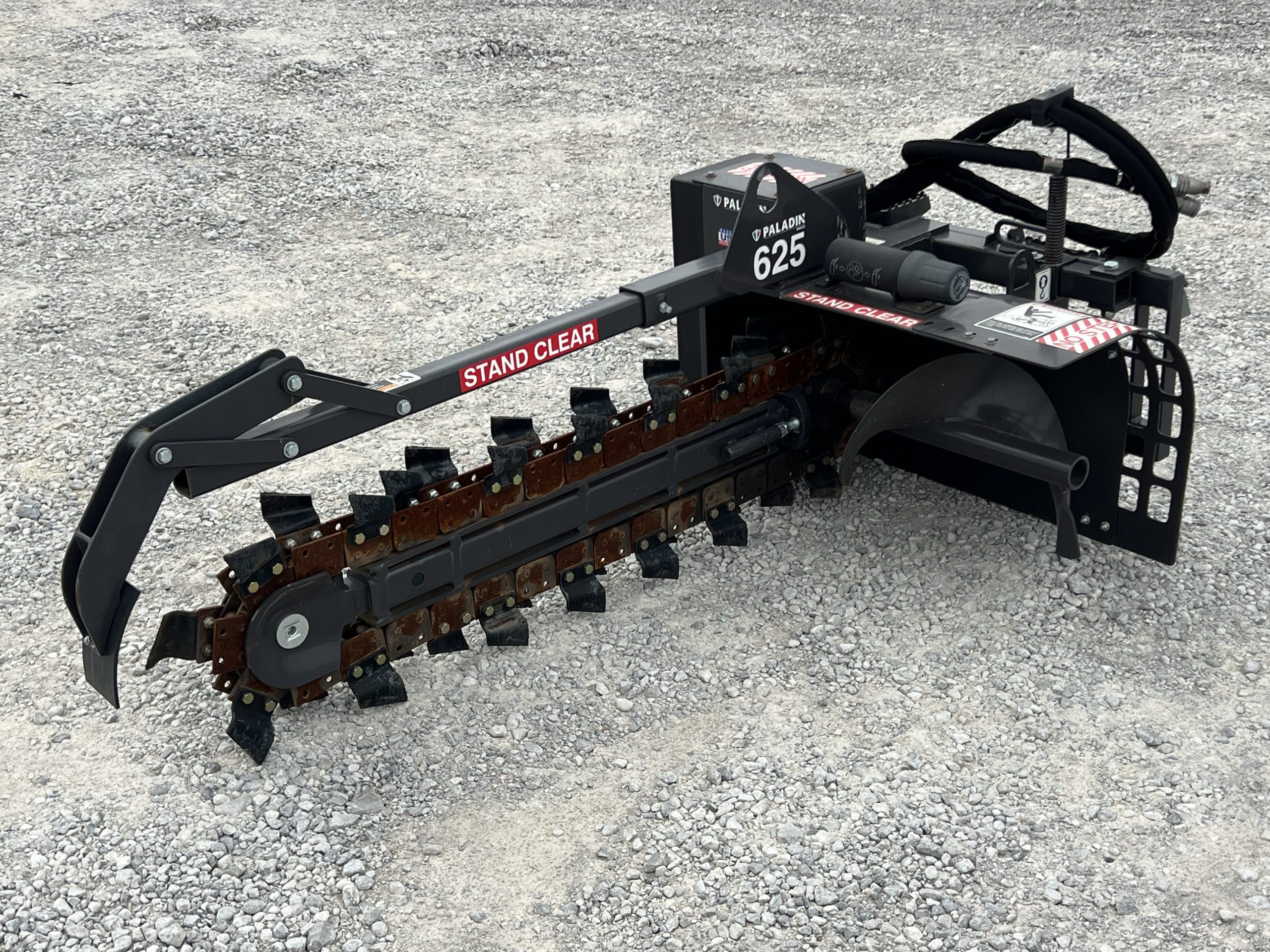

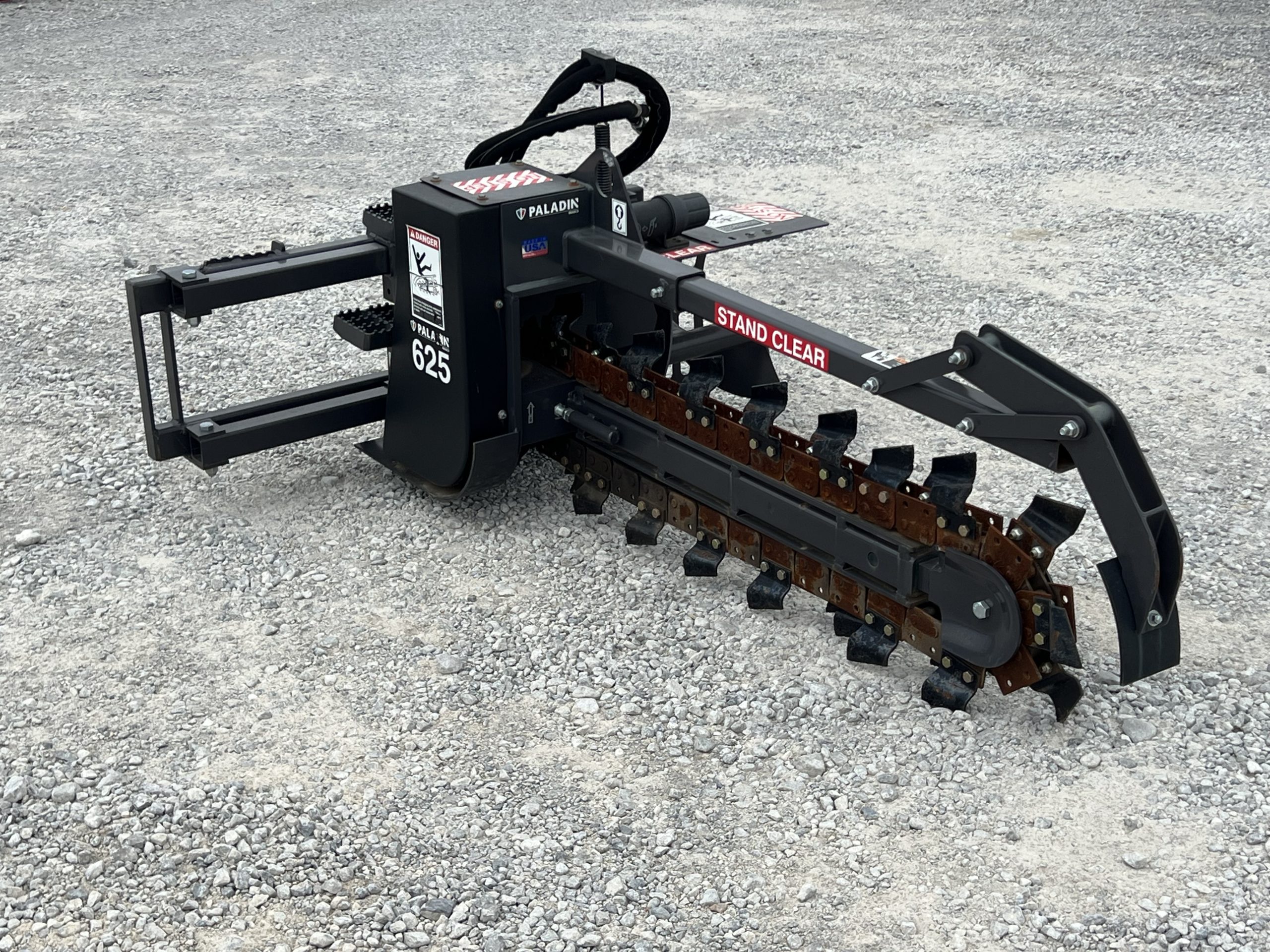

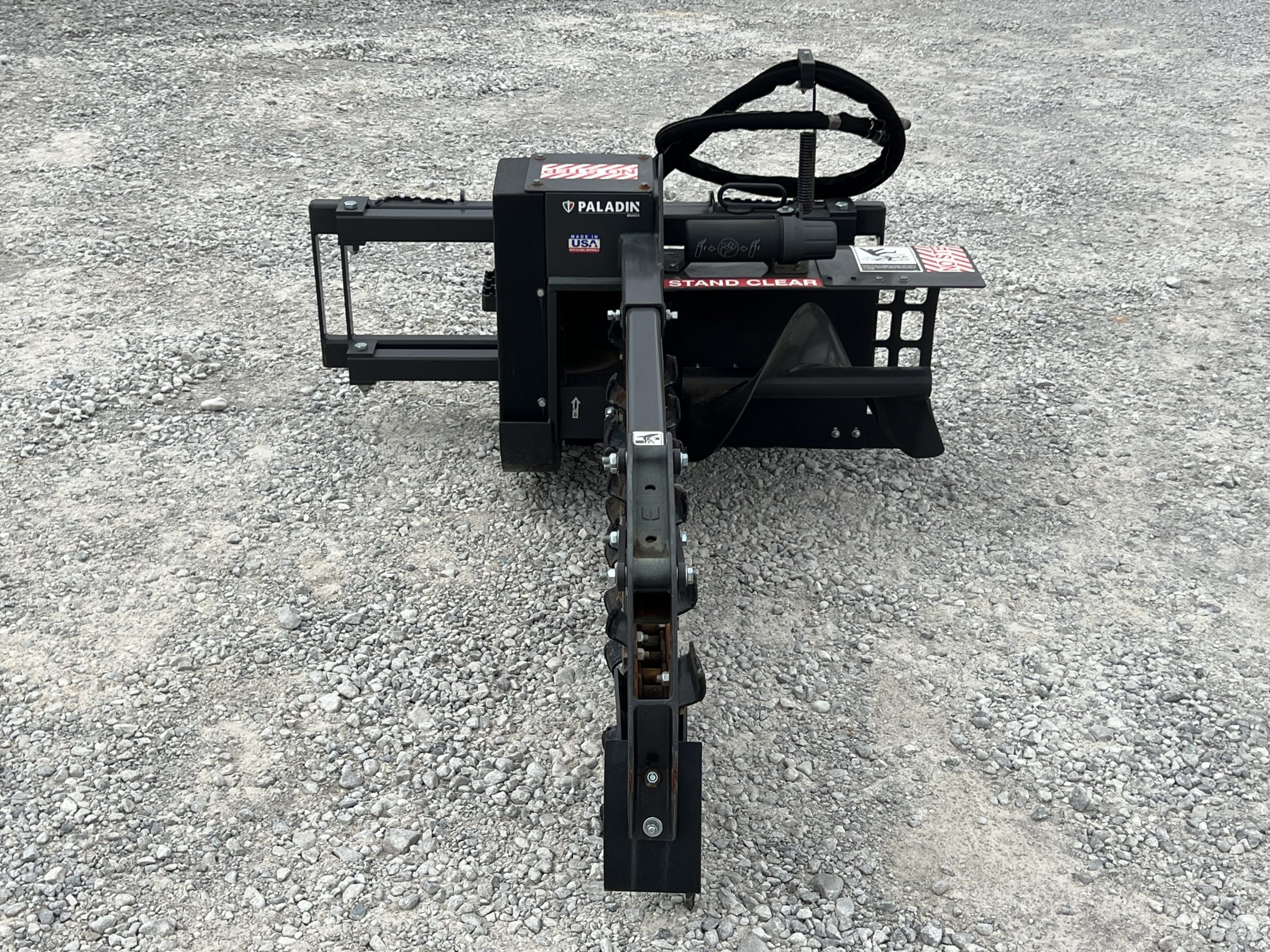

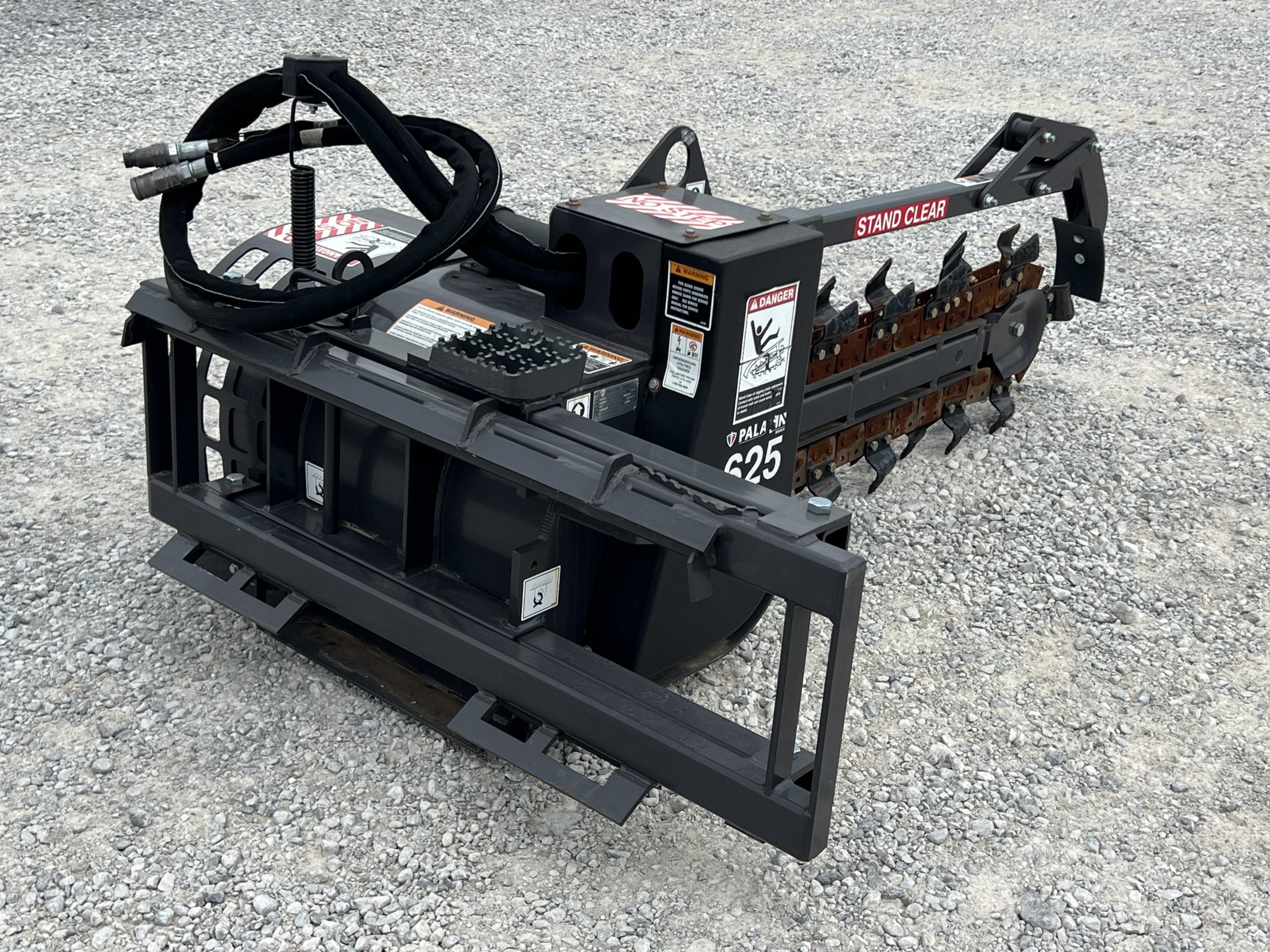

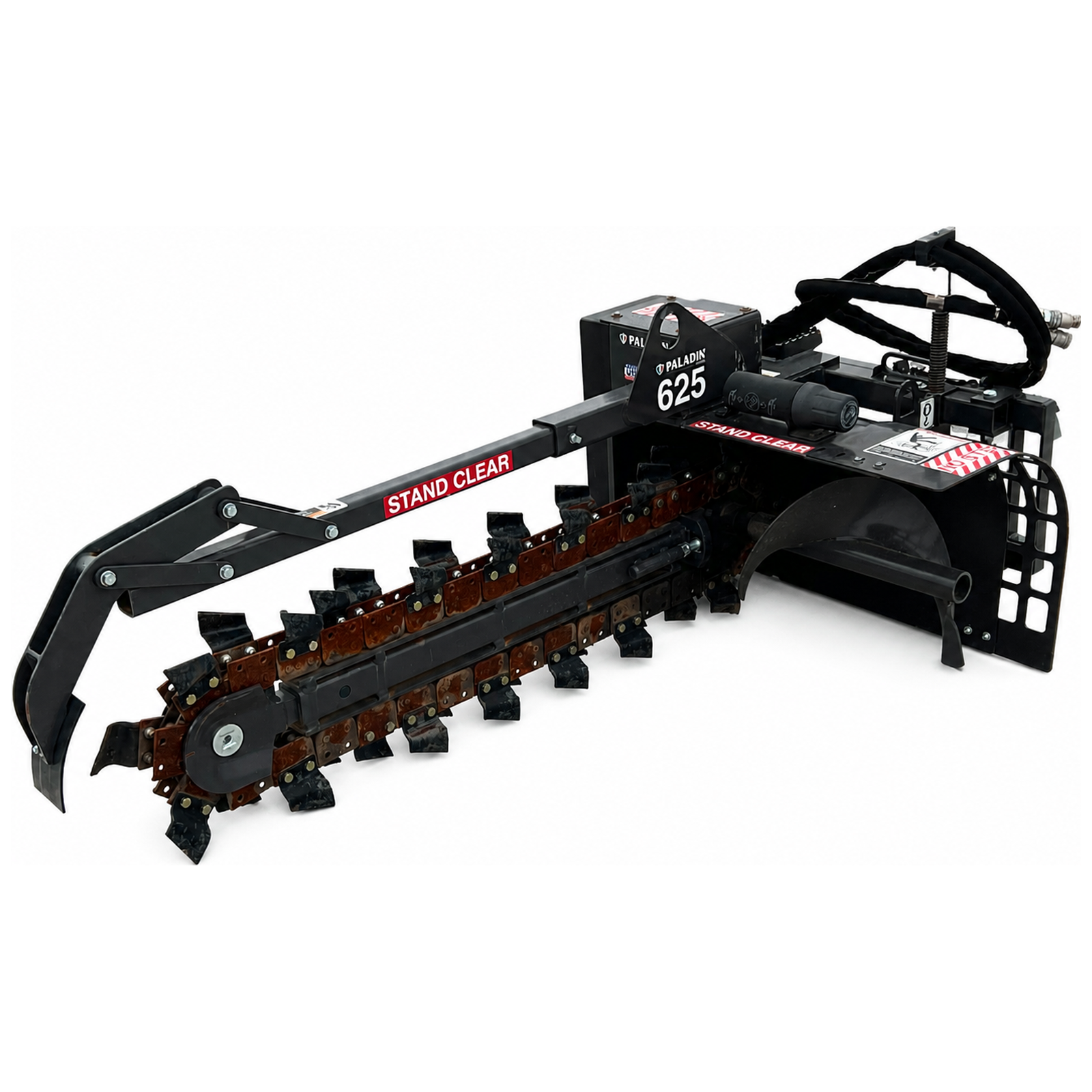

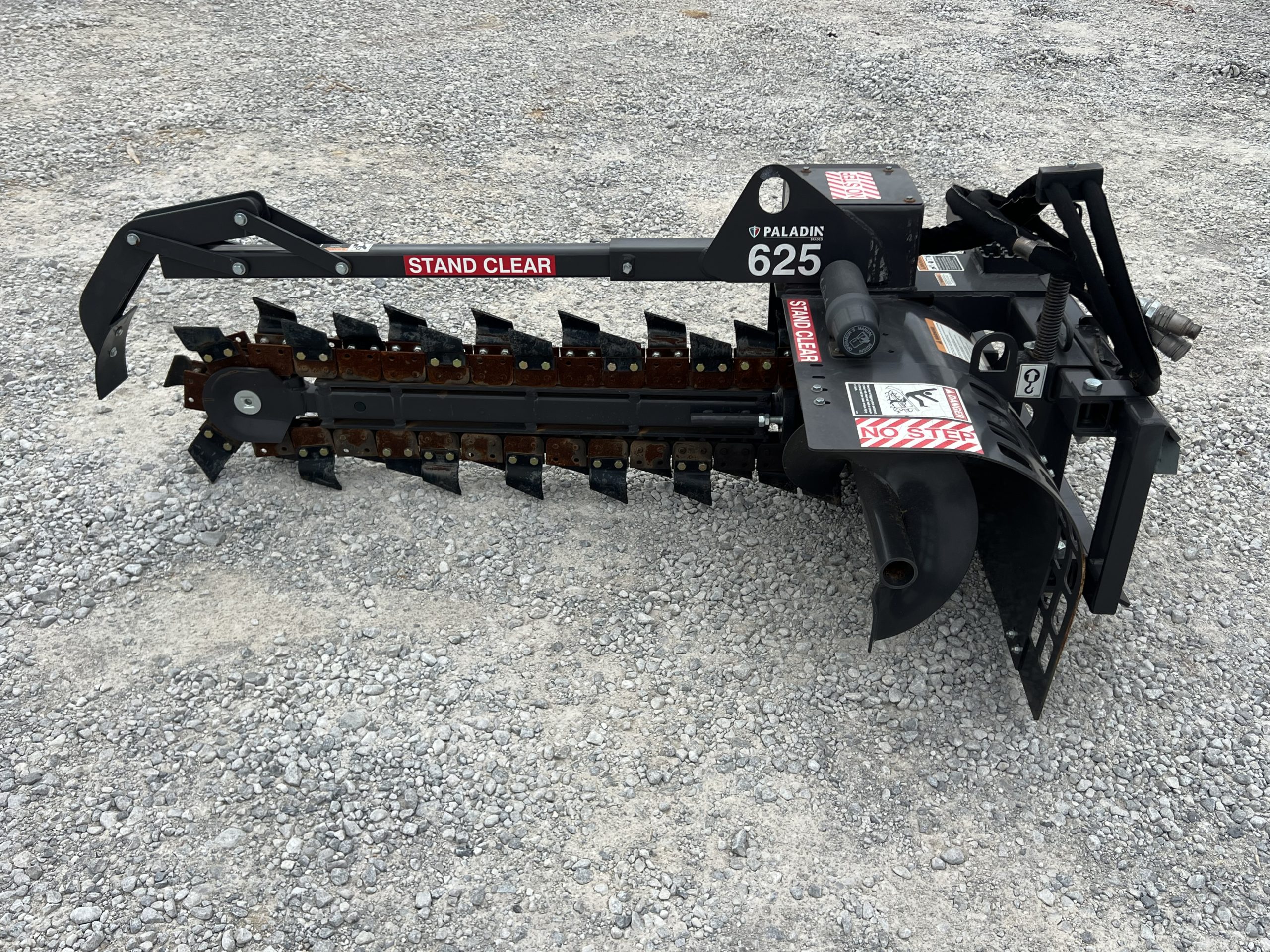

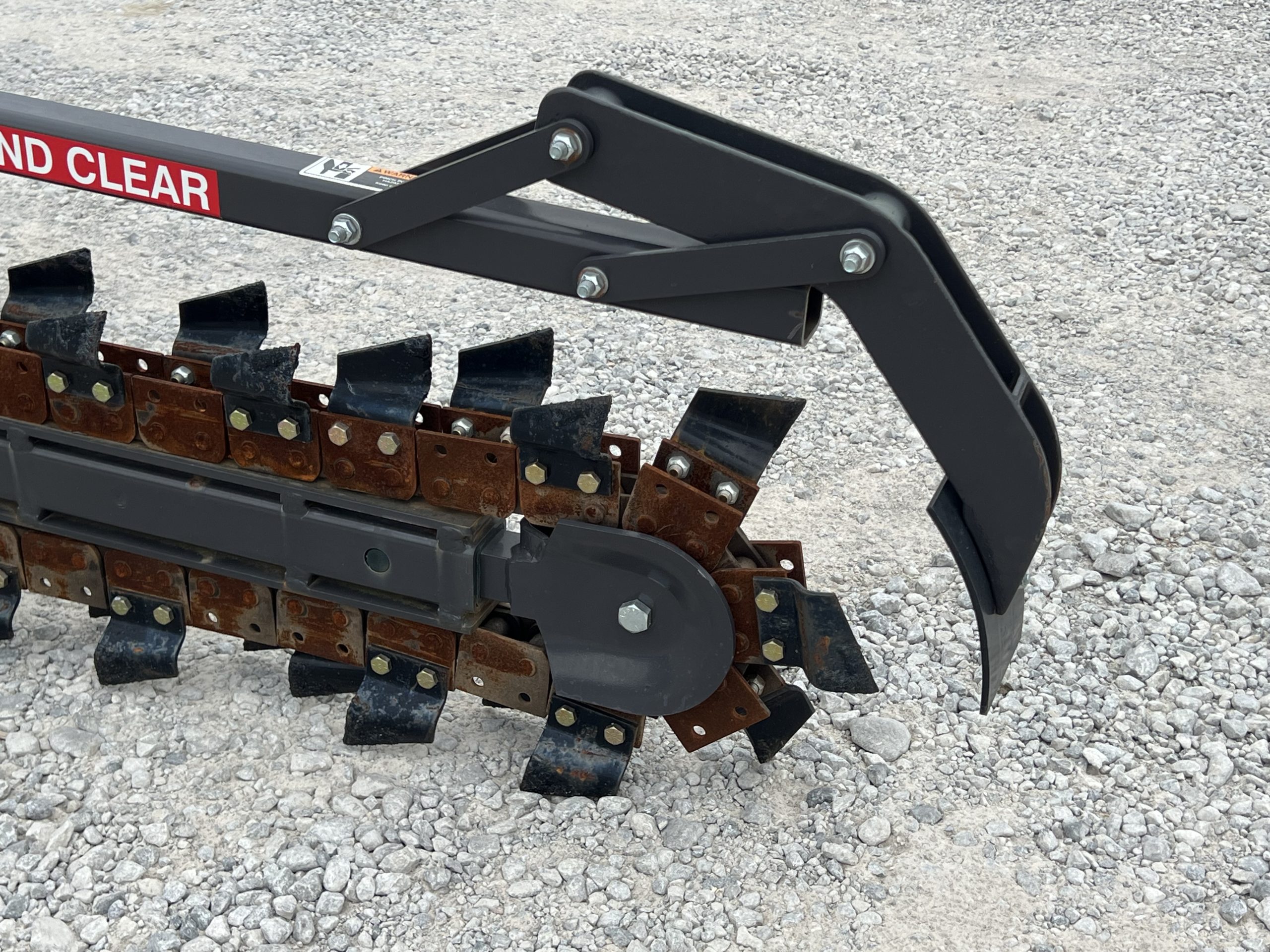

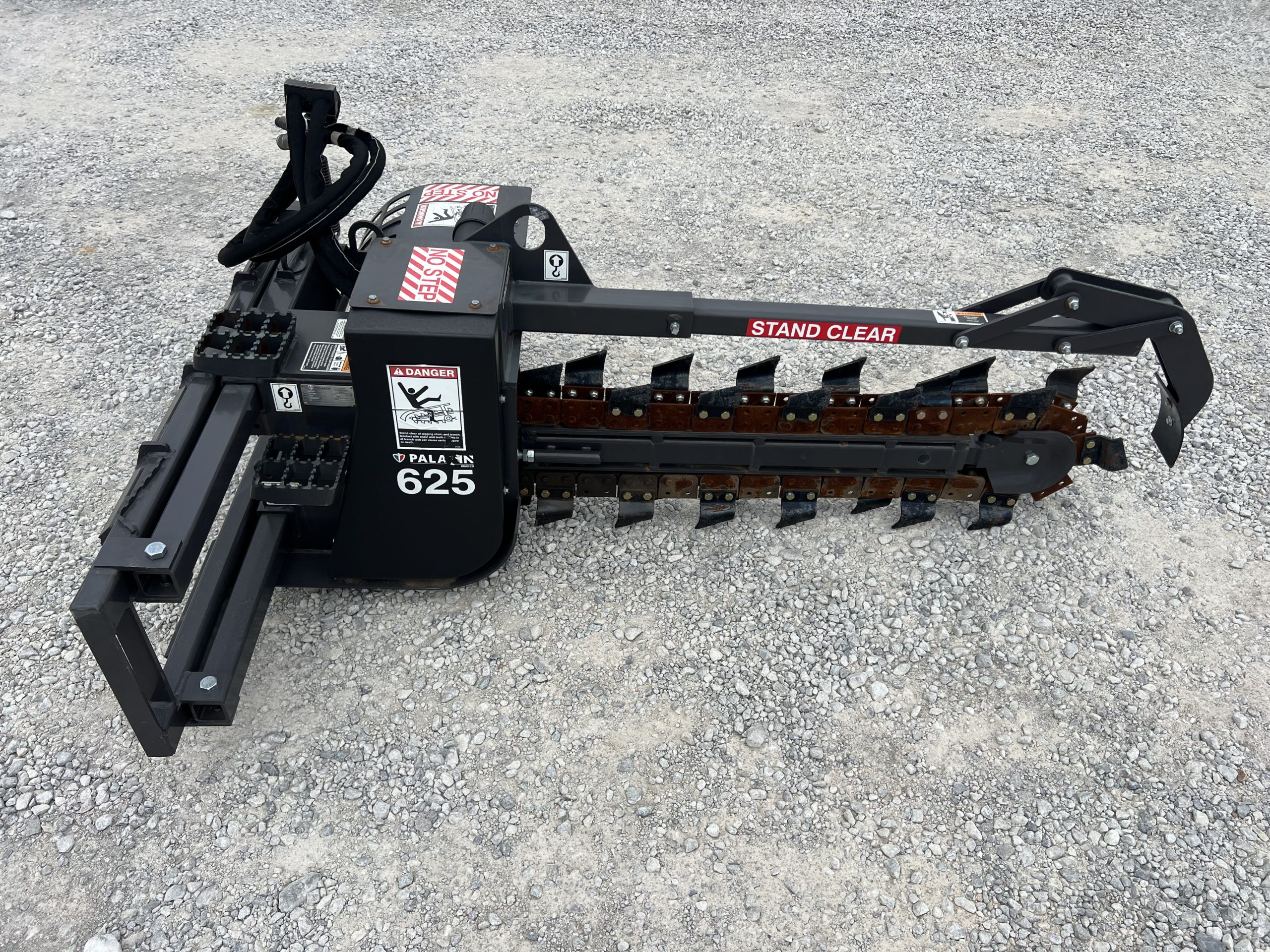

This is a new Bradco 625 Trencher equipped with a 48” long boom and 6” chain width, designed for dependable, heavy-duty trenching performance. The Bradco 625 features a fixed-length boom, spring-loaded self-adjusting idler, and full rock guards for superior reliability and protection.

Built with a heavy-duty boom and replaceable wear strips, this trencher provides precision and longevity in demanding conditions. The 50,000 lb 2” anti-back flex chain offers versatile tooth pattern options, making it ideal for a variety of soil types — from loose dirt to rocky terrain. A two-position manual side shift allows operators to trench close to structures or obstacles with ease, providing maximum efficiency and control.

Key Features

• Heavy-Duty Design: Fixed boom with replaceable wear strips and full rock guards for long service life.

• Self-Adjusting Idler: Spring-loaded system maintains proper chain tension automatically.

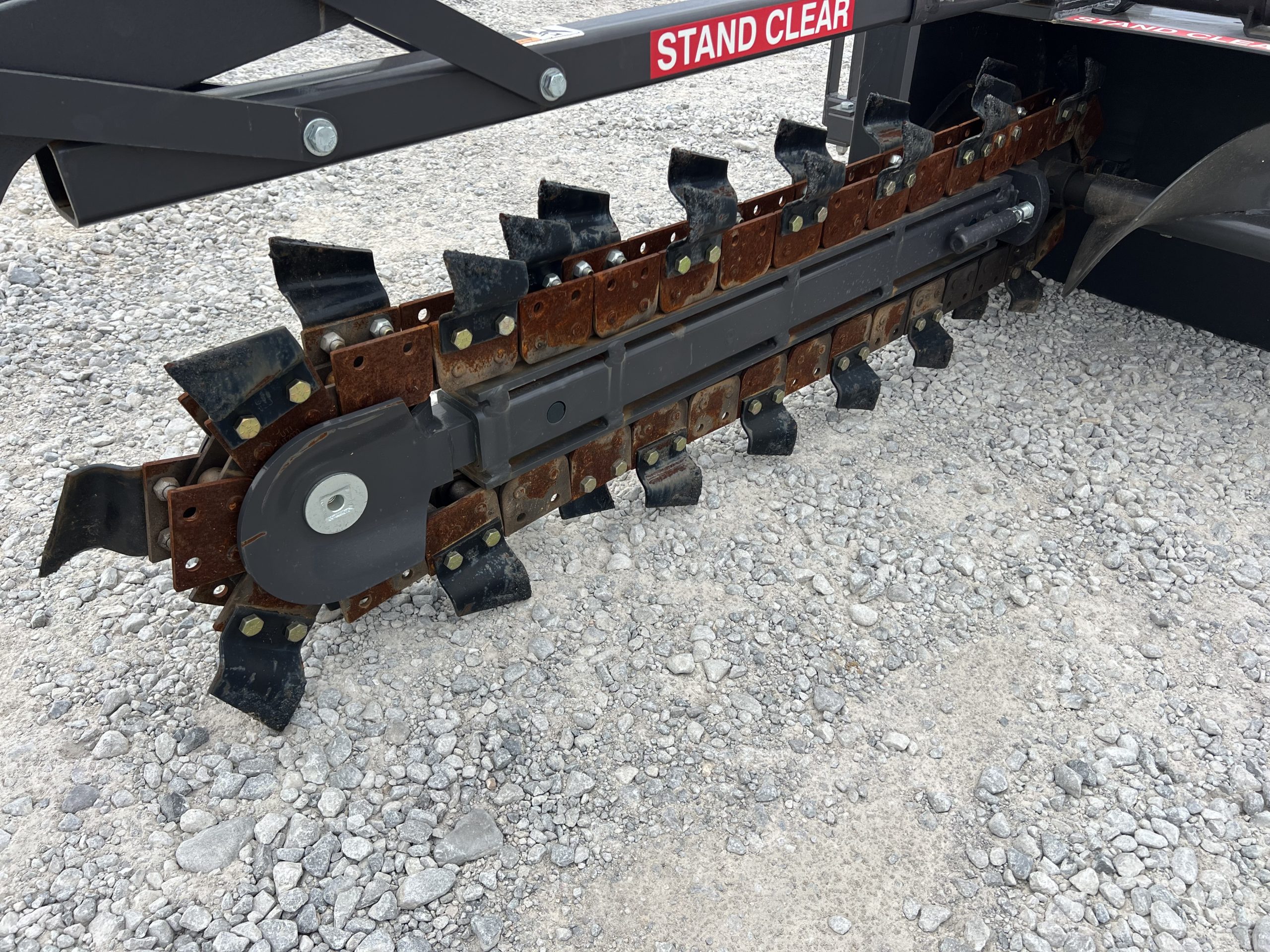

• Powerful Chain System: 50,000 lb 2” anti-back flex chain for superior strength and adaptability.

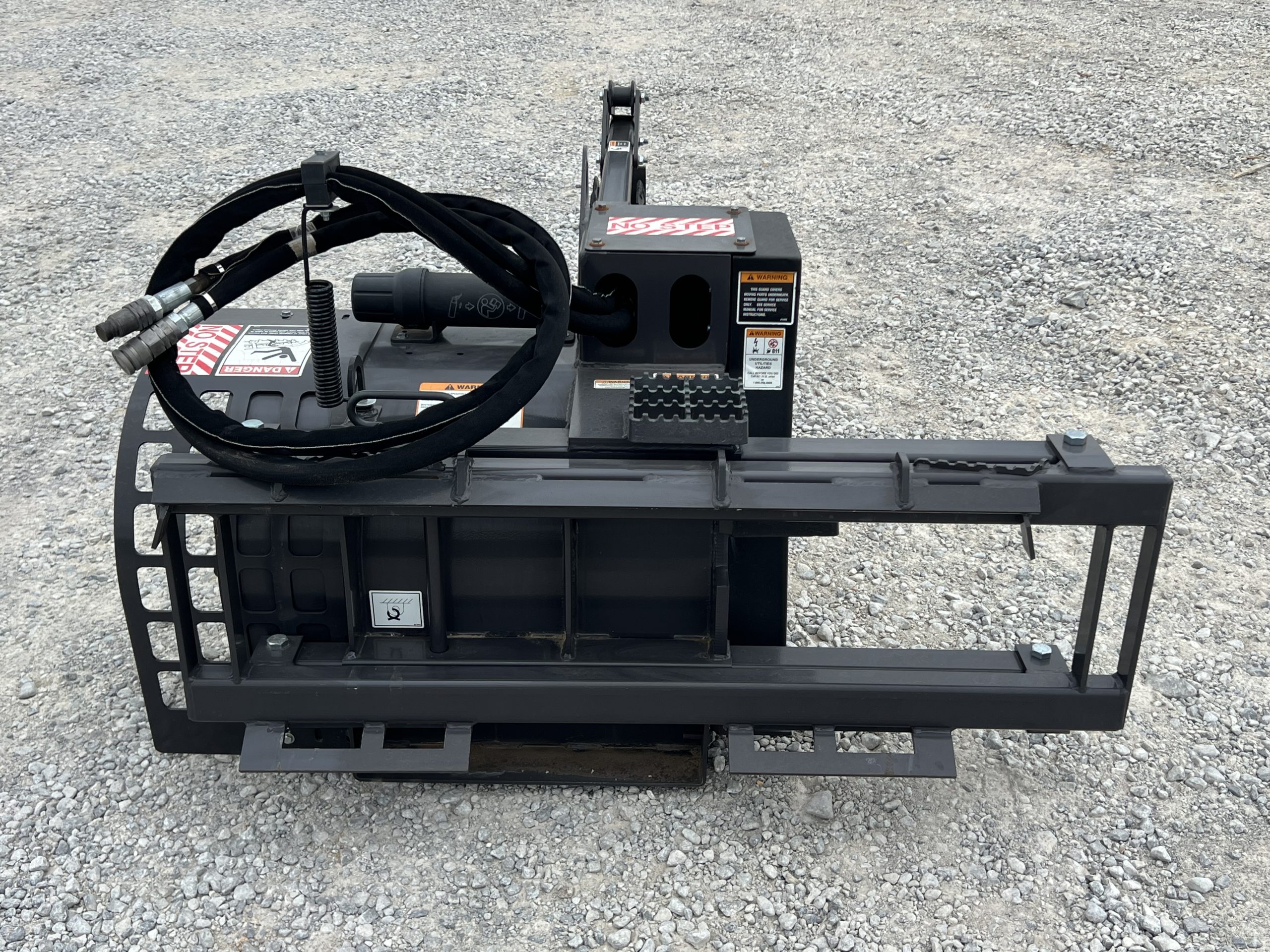

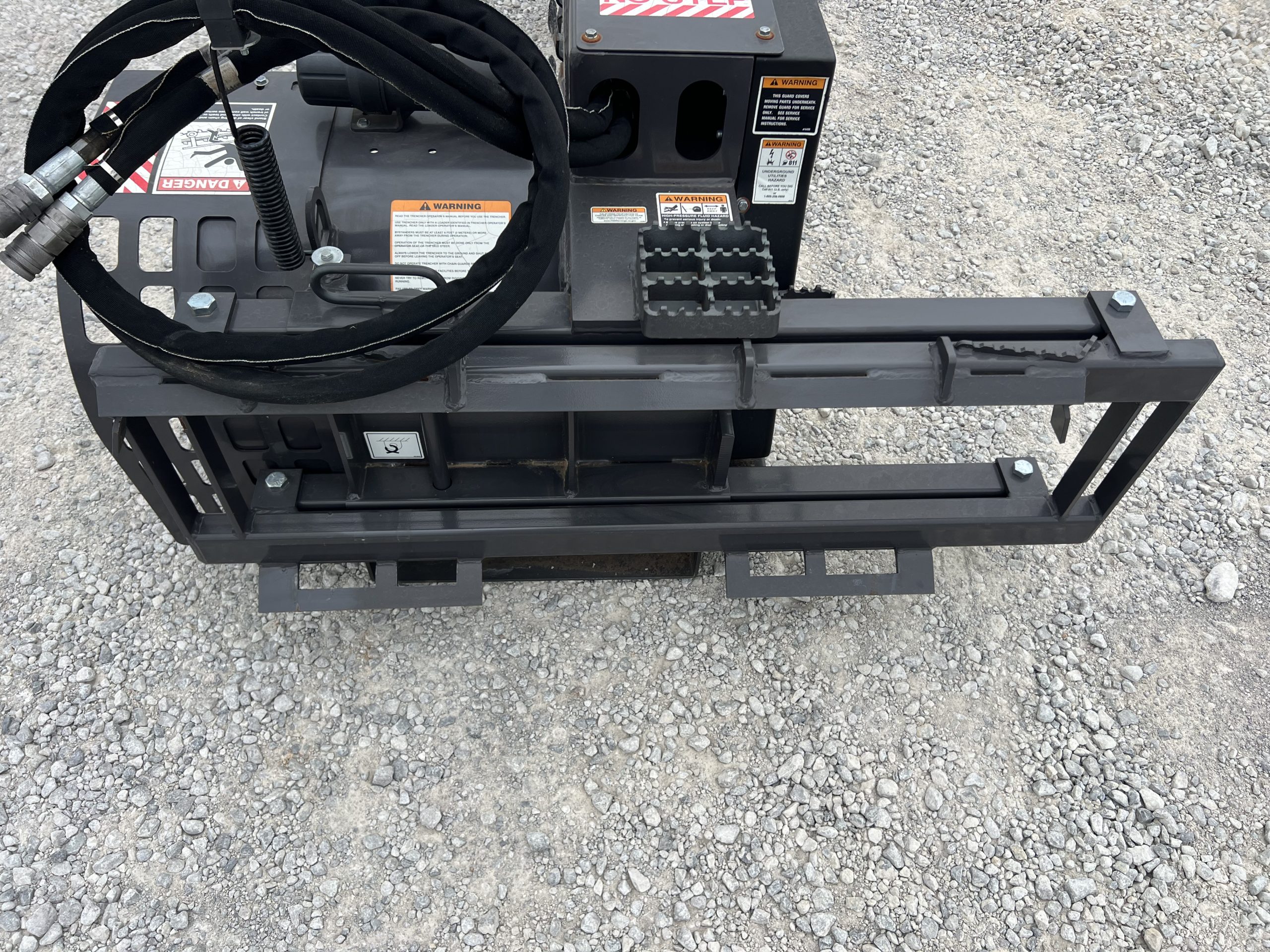

• Manual Side Shift: Two-position mounting allows trenching right up to structures or curbs.

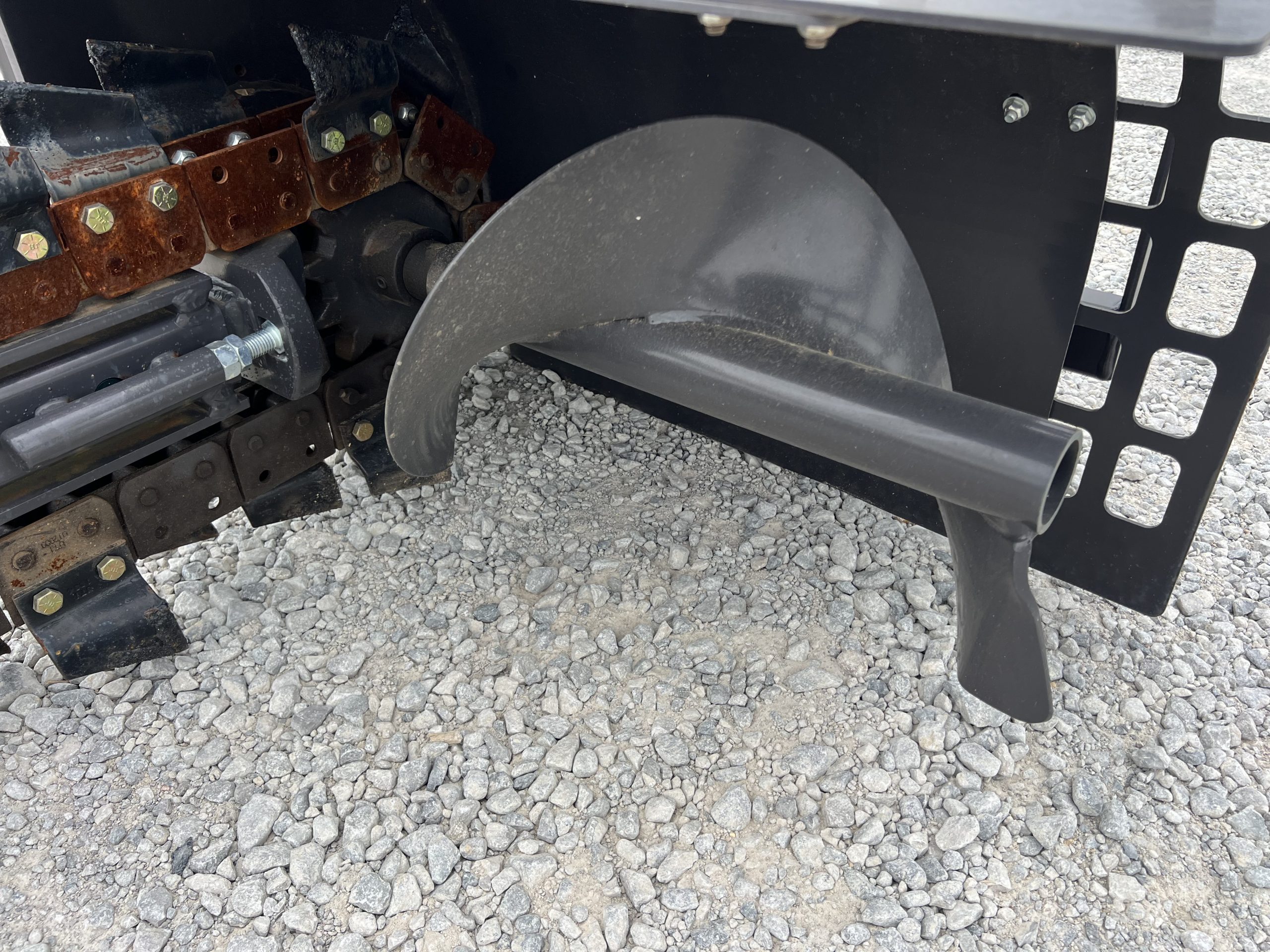

• Compact & Efficient: Provides tight-fit trenching with single-side spoil augering.

• Versatile Use: Replaces dedicated trenching machines at a fraction of the cost.

Specifications

• Make: Bradco

• Model: 625

• Part Number: 89220

• Maximum Hydraulic Flow: 22 GPM

• Maximum Hydraulic Pressure: 3,000 PSI

• Operating Weight: 988 lbs

• Trench Depth (at 65° angle): 48″

• Chain Width: 6″

• Recommended Trenching Angle: 65°

• Spoil Auger Diameter: 13″

• Headshaft Height (Auger on Ground): 8″

• Overall Length: 66″

• Overall Width: 60″

• Overall Height: 32″

• Spoil Discharge Reach: 18″

• Side Shift (Right of Center): 17″

Note: This is new but old inventory. Manufactured in 2022.
